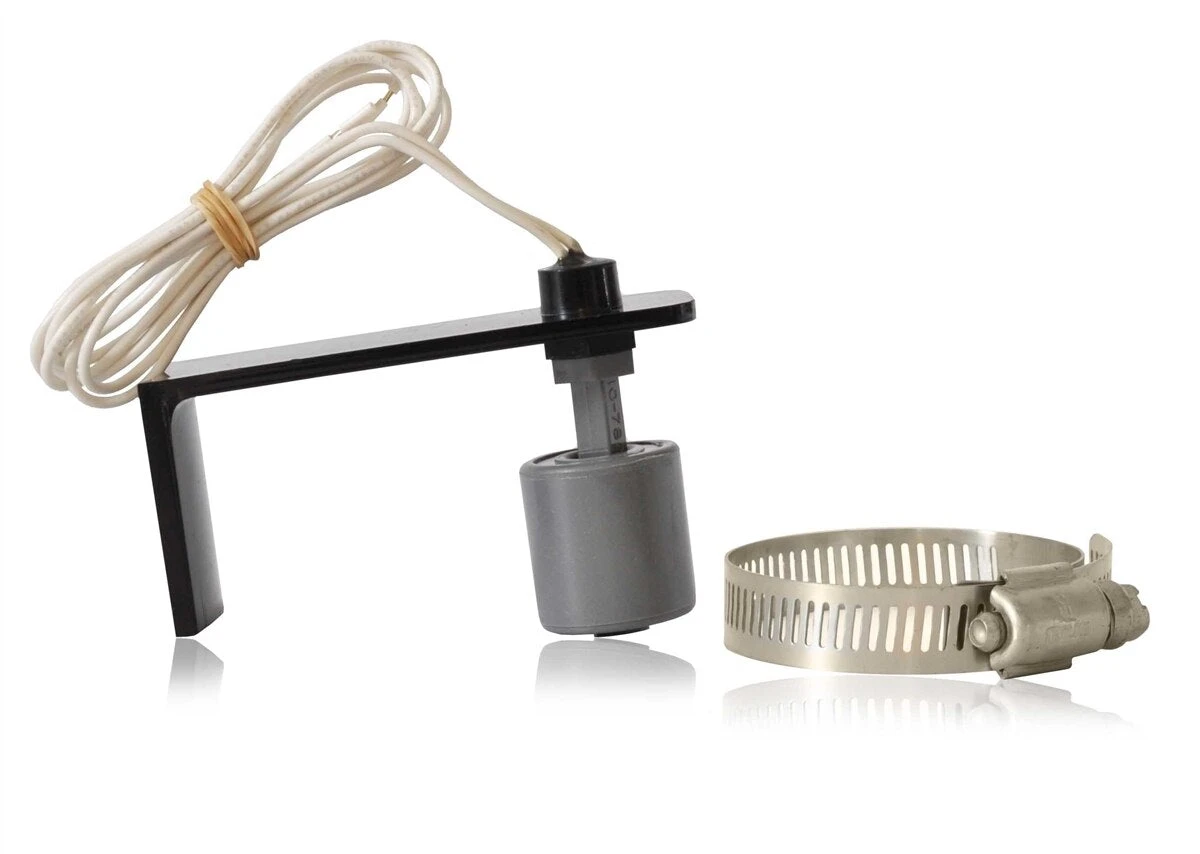

Sump Pump Alarm High Water Switch

Sump Pump Alarm High Water Switch

Preventing your basement from floods, this Sump Pump Alarm High Water Switch is a worthwhile purchase! Low cost with a simple construction, this pump fits virtually all sizes and types of return pipes. Thanks to its rugged design with non-corroding plastic materials the pump will operate totally submerged without fear of deterioration. Built to support your individual needs, a stainless steel hose clamp allows for easy mounting. An additional feature includes a unique reversible float, allowing for both a Normally Open OR Normally Closed switch circuit, whichever you prefer!

Want to receive a Text Message when your sump pump alarm is activated? Check out the SUMPSPOT.

High Water Switch Features

• Low cost
• Simple construction
• High-reliability design
• Made of non-corroding plastic materials
• Stainless steel hose clamp for easy mounting
• Sealed reed switch provides high isolation when pump wiring breaks down
• Will operate totally submerged
• Unique reversible float allows for N.O. or N.C. switch circuit
• Fits virtually all sizes and types of return pipes

High Water Switch Specifications

• Switch is U.L. listed.
• 1 Amp Max at 24 VDC.
• Recommended < 250ma.
• 24-inch lead wires (20 AWG)
• Operating temperature not to exceed 90 deg. Celsius.

High Water Switch Installation

• Mount float slightly above the point where the water level activates the sump pump.
• Connect electrical leads to the applicable circuit.
• Use of a water-tight splice is recommended.
• Test to ensure proper operation.
• To change circuit from N.C. to N.O., remove “C” clip, reverse float, reinstall “C” clip.
• When connecting to an inductive load an arc suppression device should be put in parallel with the load to avoid damaging the switch.

High Water Switch Includes

• 1 x Sump Pump Alarm High Water Switch
