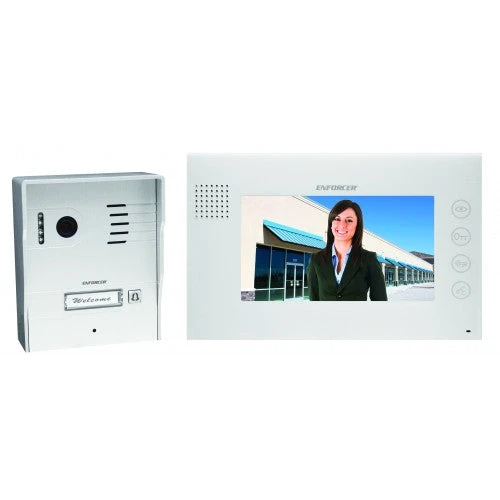

Seco-Larm Video Door Phone Intercom, 7″ Screen

For convenience or safety, the Seco-Larm DP-264-1C7Q Hands-Free Video Phone enables you to welcome guests without having to go to the door. When a visitor presses the call button, you can respond on the interior hands-free station.

The door station is easy to install with the inside station having 2 wires making it perfect for retrofit applications.

The outer station contains a built-in speaker, microphone, night vision, and colour camera with IR LED. A colour 7-inch touch-button screen and a plug-in power supply are available within the station. A  is included with the inside station.

There is a relay output that can be used to unlatch a door strike to remotely allow visitors to enter.

For expansion, one additional door station and 2 additional monitors may be added.

Note:  Does not use WiFi or smartphone apps.  This is a point to point video door intercom.

DP-264-1C7Q Features:

• Simple 2-wire connection
• Remotely and securely talk to visitors and unlock doors, gates, etc. from the monitor.
• Easily connect up to 2 additional monitors and an additional camera
• The camera has four IR LEDs for nighttime operation
• Built-in microphone and speaker for hands-free two-way communication
• Soft-touch button operation
• Weatherproof IP65 (camera only)
• Adjustable color tone, brightness, speaker, and ringer volume
• 700 TV Lines resolution, large 7″ screen

DP-264-1C7Q Specifications:

• Display: Monitor: 7″ Color TFT
• Operating voltage: Monitor: 18VDC
• Relock delay: Monitor:5 seconds
• Current draw: Camera: 150mA Monitor: Active: 555mA, Standby: 20mA
• E-lock delay: Monitor: 1 second
• IP Rating: IP65 Weatherproof (Camera only)
• Type: Color camera
• CMOS: Camera: 1/3″ CMOS sensor
• Resolution: Camera: 700 TV lines
• Lens: Camera: 2.1mm
• Relay output: Camera: 3A@30VDC max. dry contact
• Operating temperature: Camera: -13°~149°F (-25°~65°C)
• Weight: Camera: 1-lb, 6-oz (750g) Monitor:1-lb, 2-oz (560g)
• Dimensions: Camera:4-7/16″x5-3/8″x2-1/16″ (112x136x52 mm) Monitor:9-1/2″x6-5/16″x1″ (241x161x25 mm) without sunshield
