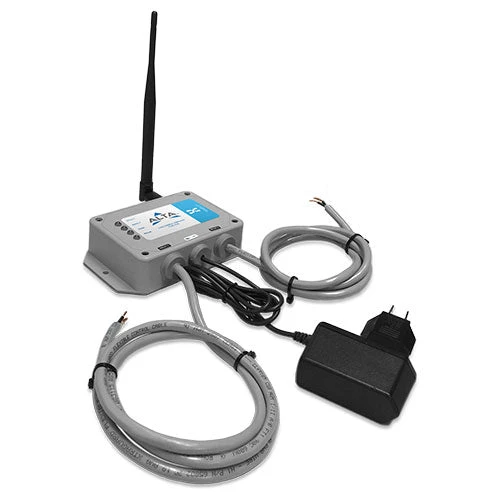

ALTA Wireless Control – Commercial 10 Amp, 900MHZ

Monnit Wireless Control allows a user to control two separate power relays, all through the iMonnit online sensors portal. Automatically control motors or electrical devices when a condition is detected by a sensor or group of sensors. Relays can also be controlled manually through the online portal or mobile app.

Monnit MNO2-9-CTL-10 Features

1,200+ foot range

12+ year battery life

80+ wireless sensors

Bank-level AES security

Up in 15 easy setup

Global ready (900, 920, 868 & 433 MHz)

Control Specifications

Input Power: 5.5 VDC @ 900 mA

Antenna: Connector: SMAGain (dBi): 3.0

Enclosure Material: ABS PlasticUL94V-0 flame rating

Dimension: 5.5 in. x 3.355 in. x 1.25 in. (139.7 mm x 85.217 mm x 31.75 mm)

Weight: 8 oz.

ALTA 900 MHz Specifications

Operating Frequency: 900 MHz Operating Frequency

Certifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)

Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*

Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
