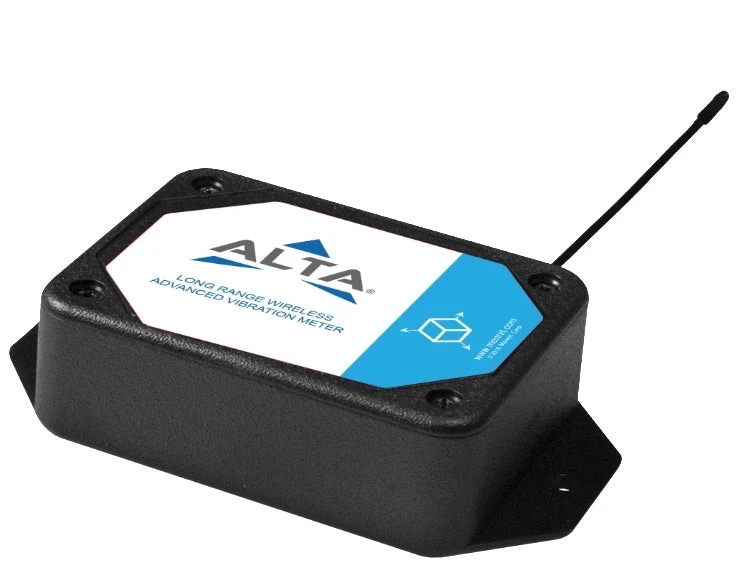

ALTA Wireless Advanced Vibration Meter – AA Battery Powered, 900MHZ

The ALTA Wireless Advanced Vibration Meter uses an accelerometer to measure vibration and frequency on 3 axes. The sensor reports vibration (acceleration, velocity, displacement, or acceleration peak), frequency (Hz/RPM), and crest factor on all three axes. It also reports duty cycle (how much of the report interval that vibration was present), and temperature.

Monnit MNS2-9-W2-AC-ADV Features

1,200+ foot range

12+ year battery life

80+ wireless sensors

Bank-level AES security

Up in 15 easy setup

Global ready (900, 920, 868 & 433 MHz)

Accelerometer Specifications

Supply Voltage: 2.0–3.8 VDC (3.0–3.8 VDC using power supply) *

Current Consumption: 0.2 µA (sleep mode), 0.7 µA (RTC sleep), 570 µA (MCU idle), 2.5 mA (MCU active), 5.5 mA (radio RX mode), 22.6 mA (radio TX mode)

Vibration Intensity Threshold Range: Acc RMS / Acc Peak: 0 to 65.535 mm/s^2, Velocity RMS: 0 to 655 35 mm/s, Displacement: 0 to 655.35 mm **

Vibration Intensity Threshold Resolution: 0.001 mm/s^2, 0.01 mm/s, .01 mm

Frequency Measurement Range: See Frequency Measurement Range table in product description

Frequency Measurement Resolution: 0.1 Hz

Sensitivity Range: Software Configurable (0 to 2.56 g / .01 g)

Thermistor Operating Range: -40°C to +125°C ( -40°F to +257°F ) / 0.1 C (0.1 F)

Rated Input Frequency: Software Configurable (See Frequency Measurement Range table in product information for available Sample Rates)

Window: Software Configurable (Rectangular, Hanning, Flat Top)***

Security: Encrypt-RF® (256-bit key exchange and AES-128 CTR)

Weight: 3.7 ounces

ALTA AA Specifications

Battery Type: 2 Replaceable AA 1.5 V Batteries

Dimension: 4.375 in x 2.470 in x 1.12 in

Supply Voltage: 2.0 – 3.8 V (2 x AA 1.5V Batteries or Optional Power Supply)

Battery Life: At 1 hour heartbeat setting, AA batteries will last up to 10 years.**

Max Operating Temperature Using AA Alkaline: -18°C to 55°C (0°F to 130°F)

Max Operating Temperature Using AA Lithium: -40°C to 60°C (-40°F to 140°F)

Optimal Battery Operating Temperature: +10°C to +50°C (+50°F to +122°F)

Enclosure Material: ABS

ALTA 900 MHz Specifications

Operating Frequency: 900 MHz Operating Frequency

Certifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)

Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*

Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
