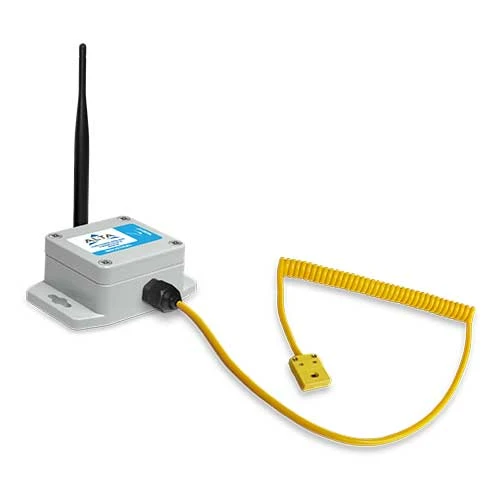

ALTA Industrial Wireless Thermocouple Sensor, K-Type Quick Connect,900MHZ

This valuable tool supports facility monitoring, food production & more. Available with a K-type connector or hardwired needle probe, thermocouple sensor measures up to 400°C (752°F).

Monnit MNS2-9-IN-TS-TC-KP Features

1,200+ foot range

12+ year battery life

80+ wireless sensors

Bank-level AES security

Up in 15 easy setup

Global ready (900, 920, 868 & 433 MHz)

Thermocouple Specifications

Thermocouple Connection Options: 6 ft hardwired probe / 5 ft K-type connector

K-Type Fixed Probe – Accuracy above 0°C: +/- 2.2°C or 0.75% (whichever is greater)

K-Type Fixed Probe – Accuracy below 0°C: +/- 2.2°C or 2.0% (whichever is greater)

K-Type Fixed Probe – Temperature Range: -100°C to +400°C ( -148°F to +752°F )

Variation Specifications

Weight: 5.9 oz. (167 g.)

ALTA Industrial Specifications

Supply Voltage: 2.0 – 3.8 VDC

Battery Type: Replaceable 3.6V, 1800mAH (single AA sized)

Battery Life: At 1 hour heartbeat setting, battery will last up to 10 years.**

Max Operating Temperature: -40° to 85°C (-40° to 185°F)

Optimal Battery Operating Temperature: +10°C to +50°C (+50°F to +122°F)

Solar Power Option: 3.0 VDC Solar Panel 600 mAH Rechargeable Battery (>2000 Charge Cycles – 80% of Initial Capacity)Charging Temperature Range: 0° to 45°C (32° to 113°F) Max Temperature Range: -20° to 60°C (-4° to 140°F)

Enclosure Material: IP65, NEMA 4X, CE rated, sealed, weatherproof enclosure

UL Rating: UL Listed to UL508-4x specifications (File E194432)

Dimension: 3.7 in x 2.32 in x 1.38 in

ALTA 900 MHz Specifications

Operating Frequency: 900 MHz Operating Frequency

Certifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)

Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*

Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
